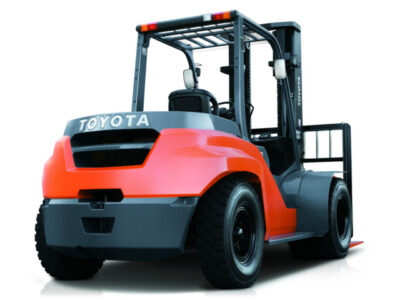

Autoelevadores a Combustión
8FG/8FD 35 80
Detalles del equipo
| Modelo | 8FG35N-8FD35N | 8FG40N-8FD40N | 8FG45N-8FD45N | 8FG50N-8FD50N | 8FG60N-8FD60N | 8FG70N-8FD70N | 8FG80N-8FD80N |
|---|---|---|---|---|---|---|---|
| Modelo de motor | 1FS 14Z-II |
1FS 14Z-II |
1FS 14Z-II |
1FS 14Z-II |
1FS 14Z-II |
1FS 14Z-II |
1FS 14Z-II |
| Capacidad Nominal de carga (Kg) | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 |
| Centro de Carga (mm) | 600 | 600 | 600 | 600 | 600 | 6800 | 600 |
| Ancho Total (mm) | 1350 | 1350 | 1450 | 1450 | 1965 | 1965 | 1965 |
| Radio de Giro Exterior (mm) | 2610 | 2660 | 2750 | 2810 | 3230 | 3280 | 3320 |
| Altura al Techo (mm) | 2210 | 2210 | 2300 | 2300 | 2310 | 2310 | 2310 |
| Largo (sin uñas) (mm) | 2995 | 2980 | 3110 | 3170 | 4390 | 3545 | 3590 |
